3 Pin Waterproof Bulkhead Electrical Connector M19 Panel Mount Connector

  • 1
  • 2
  • 3

Brand Name : Ulinkcon

Model Number : M19

Certification : CE/Rohs/TUV/UL

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T,D/P,L/C,D/A,Western Union,MoneyGram

Supply Ability : 100000 pairs Montly

Delivery Time : 3~6working days

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Current rating : 20A

Material : PA66 and Brass tin plated

Color : White Blue Red Black Yellow

Rated voltage : 300V

Flame-resistant rating : UL94-V0

Type : Wire To Board

Contact Now

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Power

Main Features


  • Item Name : M19 Waterproof Cable Connector
  • Specifications : Straight male-female mating, elbow male-female mating, front-mounted wire -to- board, rear-mounted wire -to-board,integrated injection molding
  • Coupling way: Self-locking

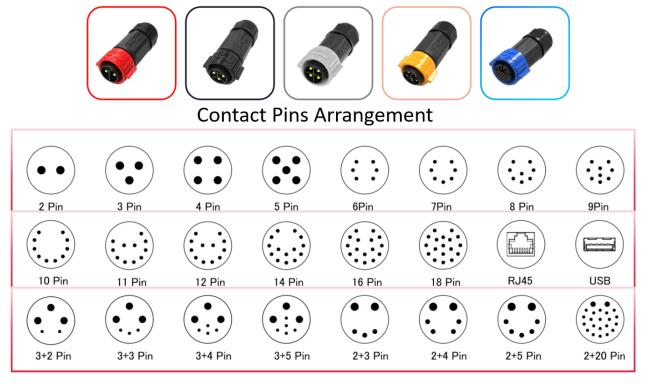

  • Pins number :2-22 pins
  • Plug : Assembly type and Injection type available
  • Socket: Front Mount, Back Mount, PCB Mount
  • Waterproof grade: IP67/ IP68
  • Connector type :Assembly lock screw；Assembly welding；Injection molding with cable
  • Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
  • Wiring range Assembled: 6. 0mm~16mm；Molding 6. 0mm~16.5 mm
  • Durability :3000 times
  • Applicabletemperature: -40℃~105​℃


Quick Description


This circular waterproof cable connector is engineered exclusively for harsh outdoor environments, designed to deliver stable, safe, and reliable 3 pin power transmission via precise structural design and premium material selection.

Boasting a 20A rated current and M19 standard interface, it perfectly matches 3 pin power supply systems, ensuring steady current transmission with minimal power loss. It meets high-level waterproof standards, resisting rain, spray, humidity, dust, oil, and corrosion. Even in open-air, construction sites, mines, docks, and other complex settings, it maintains connection tightness and safety, eliminating short circuits, electric leakage, and other environmental-induced hazards.

Constructed with high-strength engineering plastic housing and quality conductive terminals, the housing offers excellent impact resistance, aging resistance, and wide temperature adaptability (-40℃ to 105℃), avoiding deformation or cracking after long-term use. The high-conductivity copper terminals undergo special plating to reduce contact resistance, enhance conductivity and oxidation resistance, and extend product lifespan.


Electrical Parameters
Number of Poles 3 pin
Current Rating 20A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC max
Current Rating 15A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2


Design Sketch


3 Pin Waterproof Bulkhead Electrical Connector M19 Panel Mount Connector

3 Pin Waterproof Bulkhead Electrical Connector M19 Panel Mount Connector


FAQ


1. Q: What shipping methods do you offer? How long is the delivery time?

A:We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.

2. Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

3. Q: Can I have custom label?

A:Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
