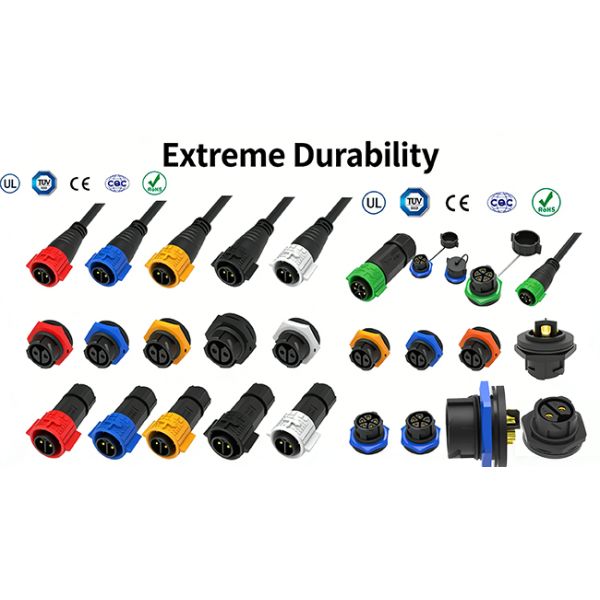

M25 3+13 Pin Waterproof Connectors Outdoor Cable Connector
Product Overview
M25 3+13 Pin IP67 Waterproof Connector Quick Release - Professional 3+13 Pin Plug Socket Waterproof M25 Data and Power Connector with IP67 rating and quick locking mechanism.
Key Features
- Push lock quick release system
- Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
- Field assembly version: both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Product Description
3+13 Multi‑Pin Hybrid Layout
Adopts a professional 3+13 pin configuration, separating high‑current power circuits and low‑voltage signal circuits to avoid mutual interference, supporting simultaneous power supply and multi‑channel signal transmission in one connector.
IP67 Waterproof & Dustproof Construction
With fully sealed structure and reliable interface design, it achieves IP67 waterproof and dustproof level, suitable for long‑term outdoor, humid, dusty and industrial harsh environments.
Panel Mount Installation Type
Designed for front/rear panel mounting, with stable fixing structure, good sealing fit and high mechanical strength, widely used in equipment cabinets, automation equipment, outdoor instruments and junction boxes.
Quick Disconnect & Self‑Locking Mechanism
Equipped with quick disconnect and self‑locking system, enabling fast plugging and unplugging without tools, ensuring firm connection under vibration and impact, effectively improving installation and maintenance efficiency.
Application Industries
Communications Application, product coding machines, inventory product coding, inkjet systems, Solar System, industrial inkjet equipment, Electric power equipment, Laboratory forensic & pathology equipment, Communications equipment, Heavy machinery
Technical Specifications
| Specification |
Details |
| Connector System |
Cable-to-Board |
| Sealable |
Yes |
| Connector & Contact Terminates To |
Wire & Cable |
| Circular Connector Type |
Plug, Receptacle |
| Shell Type |
Plastic Shell |
| Product Type |
Connector Kit |
| Number of Positions |
3+13 |
| Number of Signal Positions |
13 |
| Contacts Preloaded |
Yes |
| Operating Voltage (VAC) |
300V max. |
| Operating Voltage (VDC) |
300V max. |
| Shell Material |
PA66 |
| Circular Connector Insulation Material Type |
Low Fire Hazard Thermoplastic |
| Hermetically Sealed |
Yes |
| Entry Style |
Side |
| Environmental Protection Type |
Elastomer Sealed, Hermetically Sealed |
| O-Ring Material |
Elastomer Sealed, Hermetically Sealed |
| Environmental Protection |
Yes |
| Contact Current Rating (Max) (A) |
15A max. |
| Circular Connector Contact Type |
Pin-Socket |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Mating Alignment Type |
Keyed |
| Mating Retention |
With |
| Wire Size (AWG) |
20AWG, 18AWG, 16AWG, 14AWG |
| Operating Temperature Range (°C) |
-40 ~105°C |
| IP Water Sealing Level |
IP67 |
| IP Dust Sealing Level |
6 |
| UL Flammability Rating |
UL 94V-0 |
