5A M16 Nylon 7 Pin Waterproof Connector CE Plastic Pa66 Data Quick Lock Connector

  • 1
  • 2
  • 3

Brand Name : Ulinkcon

Model Number : M16

Certification : CE/Rohs/TUV/UL

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T,D/P,L/C,D/A,,Western Union,MoneyGram

Supply Ability : 100000 pairs Montly

Delivery Time : 3~6working days

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Pin : 7Pin

Current rating : 5A

Rated voltage : 60V

Material : Nylon

Copper needles : Copper alloy

Sealing Material : Waterproof O-Ring

Protection level : IP67

Contact Now

5A M16 Nylon 7 Pin Waterproof Connector CE Plastic PA66 Data Quick Lock Connector
Product Overview

M16 Male Female 7-Pin Waterproof Automotive Connectors designed for low power signal transmission with reliable performance in demanding industrial environments.

Main Features
  • Push lock quick release system for easy installation

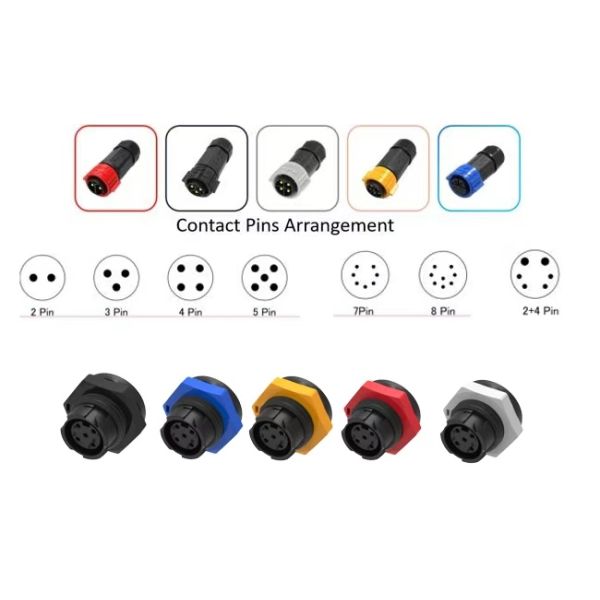

  • Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations

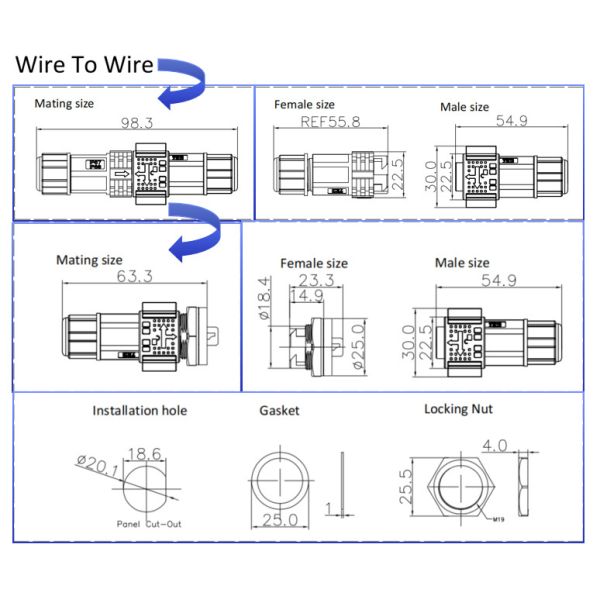

  • Field assembly versions: wire to wire and wire to board
  • Cable assembly service supported with custom options available
  • OEM/ODM services welcome
Product Specifications
  • High-performance PA66 Nylon Material: Made of high-strength, heat-resistant and anti-aging PA66 nylon material, with excellent insulation and mechanical performance for long-term reliable use.
  • 7-Pin Precision Layout for Data Transmission: Optimized 7-pin design dedicated for stable data and signal transmission, with low interference and high fidelity, ideal for sensors and control systems.
  • 5A Safe Current & Stable Performance: Rated current 5A, suitable for low-power data, signal and control circuits, ensuring safe and stable operation in various equipment.
  • IP67 Waterproof & Dustproof Structure: Fully sealed waterproof design, effectively blocking moisture, dust and oil contamination, suitable for outdoor and harsh industrial environments.
  • Quick Lock Fast Connection Mechanism: Equipped with quick lock structure for fast and tool-free plugging, firm connection, anti-vibration and anti-loosening.
  • Standard M16 Circular Interface: Universal M16 size with high compatibility, easy for panel mounting, cable assembly and equipment replacement.
  • CE Certified & Safe to Use: Compliant with CE safety standards, ensuring reliable and secure electrical performance for global market applications.
Electrical Parameters
Number of Poles 7Pin
Current Rating 5A max.
Voltage Rating 60VAC max
Durability Voltage 500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Product Images
5A M16 Nylon 7 Pin Waterproof Connector CE Plastic Pa66 Data Quick Lock Connector 5A M16 Nylon 7 Pin Waterproof Connector CE Plastic Pa66 Data Quick Lock Connector
Frequently Asked Questions
How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Where is your factory located?

Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

What is your Minimum Order Quantity (MOQ)?

The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.

Can I have custom label?

Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.
